| Features |
Unit |
Specs |
| Model |
- |

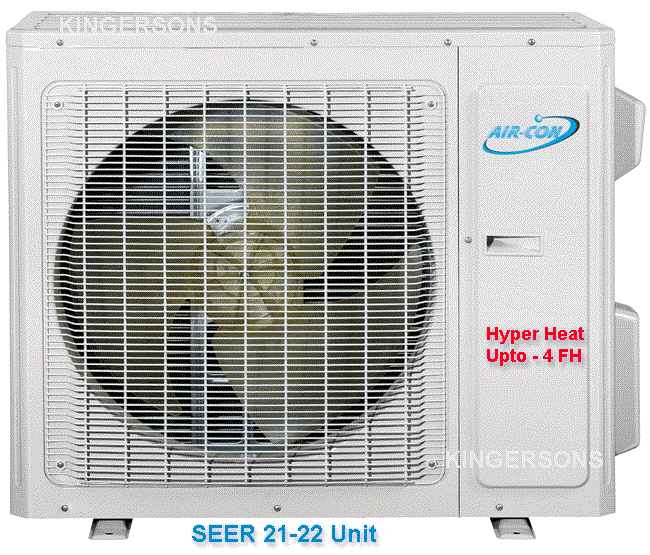

?AMSCI4H4S18 ? |
| Product Code |
- |
|
| Cooling Capacity |
kW |
5.28 |
| Cooling Capacity |
Btu/h |
18000 |
| Min. Cooling Capacity |
W |
2051 |
| Min. Cooling Capacity |
Btu/h |
6998 |
| Max. Cooling Capacity |
W |
6155 |
| Max. Cooling Capacity |
Btu/h |
21001 |
| Heating Capacity |
kW |
5.57 |
| Heating Capacity |
Btu/h |
19000 |
| Min. Heating Capacity |
W |
2052 |
| Min. Heating Capacity |
Btu/h |
7000 |
| Max. Heating Capacity |
W |
6624 |
| Max. Heating Capacity |
Btu/h |
22600 |
| EER |
W/W |
3.66 |
| EER |
(Btu/h)/W |
12.50 |
| COP |
W/W |
3.66 |
| COP |
(Btu/h)/W |
12.50 |
| SEER |
- |
22.00 |
| HSPF |
- |
10.50 |
| Air Flow Volume |
m3/h |
3200 |
| Air Flow Volume |
CFM |
1883 |
| Sound Pressure Level |
dB(A) |
56 |
| Sound Power Level |
dB(A) |
63 |
| Rated Voltage |
V |
10000 |
| Rated Frequency |
Hz |
60 |
| Phases |
- |
1 |
| Cross-sectional Area of Power Cable Conductor |
mm2 |
2.1(AWG14) |
| Recommended Power Cable(Core) |
N |
3 |
| Fuse Current |
A |
25 |
| Circuit Breaker |
A |
25 |
| Cooling Power Input |
kW |
1.44 |
| Heating Power Input |
kW |
1.52 |
| Rated Power Input |
kW |
2.8 |
| Cooling Current Input |
A |
6.26 |
| Heating Current Input |
A |
6.61 |
| Rated Current |
A |
12.42 |
| Starting Current |
A |
5 |
| Compressor Trademark |
- |
GREE |
| Compressor Manufacturer |
- |
ZHUHAI LANDA COMPRESSOR CO.,LTD |
| Compressor Model1 |
- |
QXA-B141zF030A |
| Compressor Type1 |
- |
Inverter Rotary |
| Compressor Capacity |
W |
4320 |
| Compressor Power Input |
W |
1440 |
| Compressor Rated Load Amp (RLA) |
A |
10.82 |
| Compressor Locked Rotor Amp (L.R.A) |
A |
/ |
| Compressor Thermal Protector |
- |
1NT11L-6233 |
| Compressor Crankcase |
W |
25W±7% |
| Compressor Refrigerant Oil Type |
- |
RB68EP |
| Compressor Refrigerant Oil Charge Volume |
L |
0.39 |
| Chassis Electrical Heater Power Input |
W |
96W±5% |
| Chassis Electrical Heater Current |
A |
/ |
| Fan Type |
- |
Axial-flow |
| Fan Quantity |
- |
1 |
| Fan Diameter-height |
mm |
520-58 |
| Motor Model |
- |
LW60M-ZL |
| Motor Type |
- |
DC motor |
| Motor Insulation Class |
- |
E |
| Motor Safe Class |
- |
IPX4 |
| Overload Protector |
- |
/ |
| Motor Full Load Amp(FLA) |
A |
/ |
| Fan Motor Drive Type |
- |
Direct drive |
| Fan Motor Speed |
rpm |
630 |
| Fan Motor Power Output |
W |
60 |
| Fan Motor Power Input |
W |
/ |
| Fan Motor Capacitor |
µF |
/ |
| Condenser Material |
- |
Aluminum Fin-copper Tube |
| Condenser Face Area |
m2 |
0.56 |
| Condenser Pipe Diameter |
mm |
f7 |
| Condenser Number of Rows |
- |
2 |
| Condenser Tube Pitch(a)×Row Pitch(b) |
mm |
19.05×22 |
| Condenser Fin Pitch |
mm |
1.4 |
| Condenser Fin Type |
- |
corrugated fin |
| Condenser Fin Colour |
- |
Blue |
| Condenser Length(L) × Height(H) × Width(W) |
mm |
851×660×38.1 |
| Condenser Max. Allowable Pressure |
MPa |
10 |
| Permissible Excessive Operating Pressure for the Discharge Side |
MPa |
4.3 |
| Permissible Excessive Operating Pressure for the Suction Side |
MPa |
2.5 |
| Maximum Allowable Pressure |
MPa |
4.3 |
| High Presser Overload Protector |
MPa |
/ |
| Low Presser Overload Protector |
MPa |
/ |
| Cooling Operation Ambient Temperature Range |
FH |
-1 |
| Heating Operation Ambient Temperature Range |
FH |
-4 |
| Maximum drive IDU NO. |
unit |
2 |
| Defrosting Method |
-- |
Automatic Defrosting |
| Isolation |
- |
I |
| Moisture Protection |
-- |
IPX4 |
| Overload Protector |
- |
/ |
| Climate Type |
- |
T1 |
| Refrigerant |
- |
R410A |
| Refrigerant Charge |
kg |
1.6 |
| Throttling Method |
- |
Electron expansion valve |
| Dimension of Outline(W×D×H) |
mm |
955×396×700 |
| Dimension of Carton Box(L×W×H) |
mm |
1026×455×735 |
| Dimension of Package(L×W×H) |
mm |
1029×458×750 |
| Net Weight |
kg |
52.0 |
| Gross Weight |
kg |
56.5 |
Outdoor Unit Loading Quantity
( 20’ Container ) |
unit |
81 |
Outdoor Unit Loading Quantity
( 40’ Container ) |
unit |
171 |
Outdoor Unit Loading Quantity
( 40’ High Cube Container ) |
unit |
171 |
| Connection Pipe Connection Method |
- |
Flare Connection |
| Not Additional Gas Connection Pipe Length |
m |
10 |
| Connection Pipe Gas Additional Charge |
g/m |
20 |
| Connection Pipe Liquid Pipe Outer Diameter 1 |
mm |
f6 |
| Connection Pipe Liquid Pipe Outer Diameter 2 |
mm |
f6 |
| Connection Pipe Liquid Pipe Outer Diameter 3 |
mm |
/ |
| Connection Pipe Liquid Pipe Outer Diameter 4 |
mm |
/ |
| Connection Pipe Liquid Pipe Outer Diameter 5 |
mm |
/ |
| Connection Pipe Gas Pipe Outer Diameter 1 |
mm |
f9.52 |
| Connection Pipe Gas Pipe Outer Diameter 2 |
mm |
f9.52 |
| Connection Pipe Gas Pipe Outer Diameter 3 |
mm |
/ |
| Connection Pipe Gas Pipe Outer Diameter 4 |
mm |
/ |
| Connection Pipe Gas Pipe Outer Diameter 5 |
mm |
/ |
| Connection Pipe Max. Height Distance(indoor and indoor) |
m |
10 |
| Connection Pipe Max. Height Distance(indoor and outdoor and indoor up) |
m |
10 |
| Connection Pipe Max. Height Distance(indoor and outdoor and outdoor up) |
m |
10 |
| Max. equivalent connection pipe length(outdoor to last indoor) |
m |
10 |
| Connection Pipe Max. Length Distance(total lenght) |
m |
20 |
|
Special Features
|
| Low Ambient Cooling Function |
|
YES |
| Defrosting Time Set Function |
|
YES |
| Low Voltage Startup |
|
YES |
| Compressor With Electric Heater |
|
YES |
| Chassis With Electric Heater |
|
YES |
